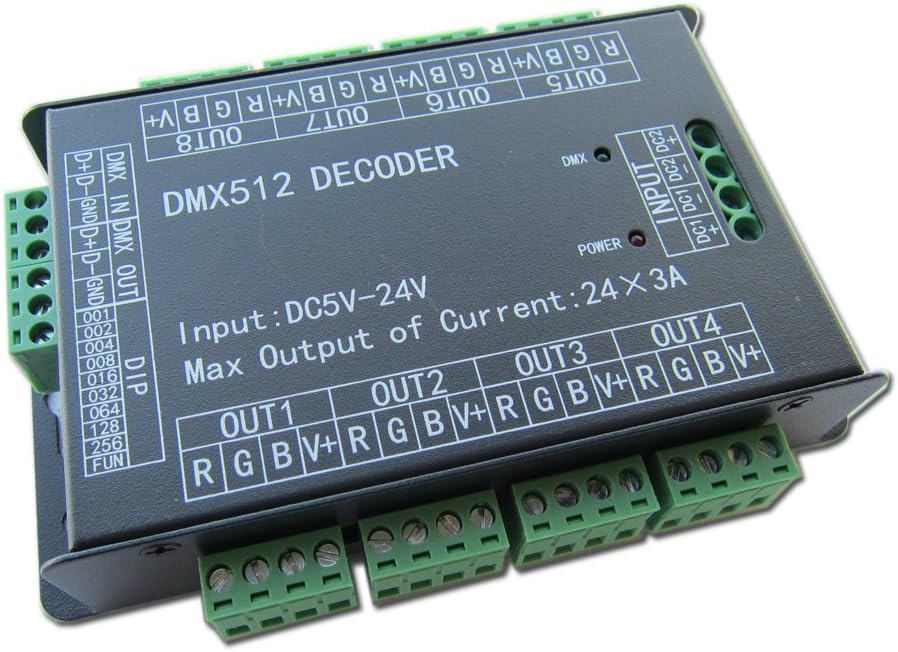

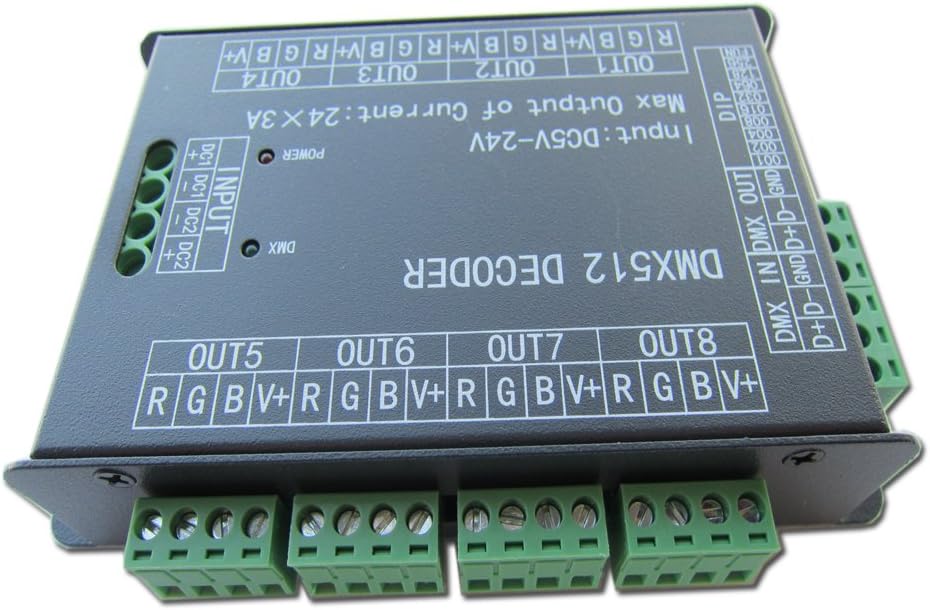

24 Channel DMX512 LED Decoder Dimmer DC 5V-24V E5291
Sale price
$13.99
Regular price $61.54
Skip to product information
Automatically Adapt to DC5V-24V, Power loss memory function
Standard DMX512 Signal,addresses can be set by DIP switch.
3A each channel max 72A
RGB 24 Channel,8 Group,(ideal for RGB LEDs).
Power input: DC 5V – 24V
Channels: 24 (8 groups of 3 channels ideal for RGB)
Output rating: 3A per channel
Input: DMX512
Plug-in terminal blocks for easy connections
Operating temperature: -20 50°C
imensions: 145 x 78 x 31mm (145 x 109 x 31mm including connectors)
The DMX decoder has 24 PWM outputs that are controlled by a DMX512 input. The DMX channel is set by DIP switches on the side of the device.
There are 10 built-in programs which can be used for testing or for simple displays.
This device has two DC power inputs (one for each set of 12 outputs), allowing the outputs to be split across two power sources for high-current applications.
Musical Instruments Live Sound & Stage Lighting Equipment & Accessories
24 Channel DMX512 LED Decoder Dimmer DC 5V-24V E5291
Sale price
$13.99
Regular price $61.54
Shipping calculated at checkout.
Automatically Adapt to DC5V-24V, Power loss memory function
Standard DMX512 Signal,addresses can be set by DIP switch.
3A each channel max 72A
RGB 24 Channel,8 Group,(ideal for RGB LEDs).
Product Description
24CH RGB DMX decoding driver converts a DMX512/1990 input to PWM output with 256 different levels output per channel. With improved firmware, it provides flicker free and smoother dimming.
Power input: DC 5V – 24V
Channels: 24 (8 groups of 3 channels ideal for RGB)
Output rating: 3A per channel
Input: DMX512
Plug-in terminal blocks for easy connections
Operating temperature: -20 50°C
imensions: 145 x 78 x 31mm (145 x 109 x 31mm including connectors)
The DMX decoder has 24 PWM outputs that are controlled by a DMX512 input. The DMX channel is set by DIP switches on the side of the device.
There are 10 built-in programs which can be used for testing or for simple displays.
This device has two DC power inputs (one for each set of 12 outputs), allowing the outputs to be split across two power sources for high-current applications.
